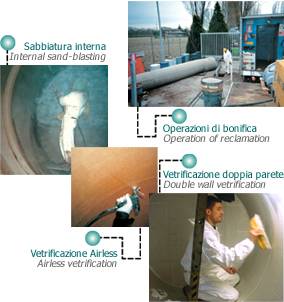

Reclamation
This operation is absolutely necessary for the cleaning
and it precedes each activity of control, of restoration through
vitrification or of removal.
It's the most delicate stage as it requires the respect of all the
safety rules.
The teams are made of three operators, the foreman is also responsible
for the safety on the yard.
The whole equipment is specifically for the use in presence of toxic
vapours and explosive gases, the means of transport are authorised
as by law enacted.
For each intervention of reclamation we issue the respective card
with the relation of the works which have been carried out and the
conditions of the tanks.
Sand-blasting
a fter the reclamation, this type of intervention, even if optional,
guarantees the good result of the vitrification in terms of adherence
and therefore in endurance, as it prepares the surface which has
to be treated to a better seize of the resins. In fact, it doesn't
only remove eventual and pre-existent residual products, but it
smoothes the surface and in the same time makes it uniform, ready
to by covered.
These operations take place by using specific equipment for the
internal sand-blasting of the tanks (or of the cement tanks) and
sands with the minimum thickness in order to guarantee the best
result.
Restoration
In these specialisation levels ECOPETROL Ltd. has achieved
qualified experience; there exist different ways of restoration
of the damaged or pierced tank which are applied following different
ways of realisation:
- Traditional method with rollers this method consists in the
utilisation of special fabrics in fibre glass of 1050g/m2, impregnated
with particular iso-ophtalic resins till the obtaining of a thickness
from 2.5 mm to 4 mm.
- Airless vitrification consists in the spray application, through
AIRLESS equipment, of a coat of epoxydic resin and a coat of antistatic
covering on the whole surface to treat till the obtaining of a
thickness of max. 4 mm. The utilised products are suitable for
containing any kind of hydrocarbon on sale at the present.
- Double wall covering After having carried out the usual operation
of cleaning, we'll apply a coat of a clinging product followed
by knotty aluminium through a biadhesive tape at the inside of
the tank. The covering will be completed utilising an AIRLESS
system followed by a spray application of epoxydic resin on the
aluminium and a final touch of antistatic product. This system
offers the possibility to create a second surface at the inside
of the tank, especially if the plate is damaged. This system guarantees
the re-utilisation of the restored tank respecting the laws 22/97
and 246 from 05/24/99.
At the end of each kind of covering we'll issue a valid certificate
of guarantee.
